TEKON proves its competence in the development, production and sales of electronic test equipment for the automotive and electronic industry. Innovative thinking and high quality products stand for the name TEKON and have made the company an essential partner for these industries.

SKU: A011C10 Category:

The Company

Since more than 30 years TEKON proves its competence in the development, production and sales of electronic test equipment for the automotive and electronic industry. Innovative thinking and high quality products stand for the name TEKON and have made the company an essential partner for these industries.

Nowadays TEKON not only provides a wide variety of spring contact probes, but also designs and manufactures unique and sophisticated solutions for the electronic testing of assemblies. The high quality turned parts needed for this purpose are produced by TEKON’s subsidiary TEKPRO.

The strengths of our company are a customer oriented, flex- ible philosophy and a continuous strive for innovation. This consequent thinking has been proven by many new product developments over the years, like for example our TEKOFLEX system for four-wire-measurement on flat blades.

For each development our considerations are focused on the customer and his requirements in order to jointly elabo- rate the technically most efficient as well as economical solution.

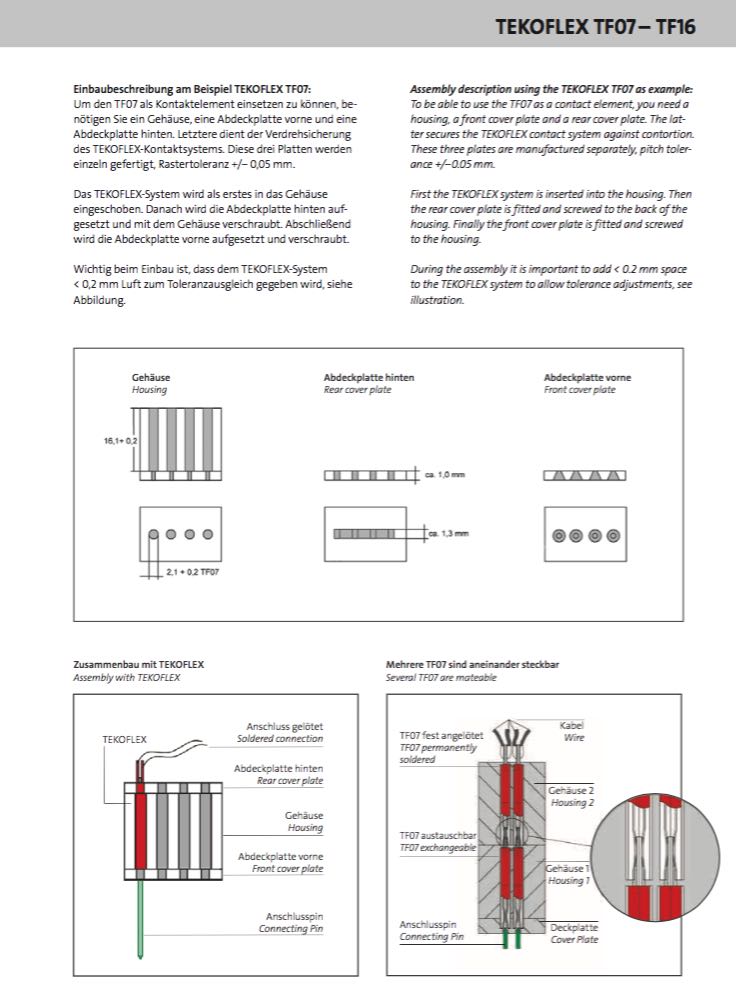

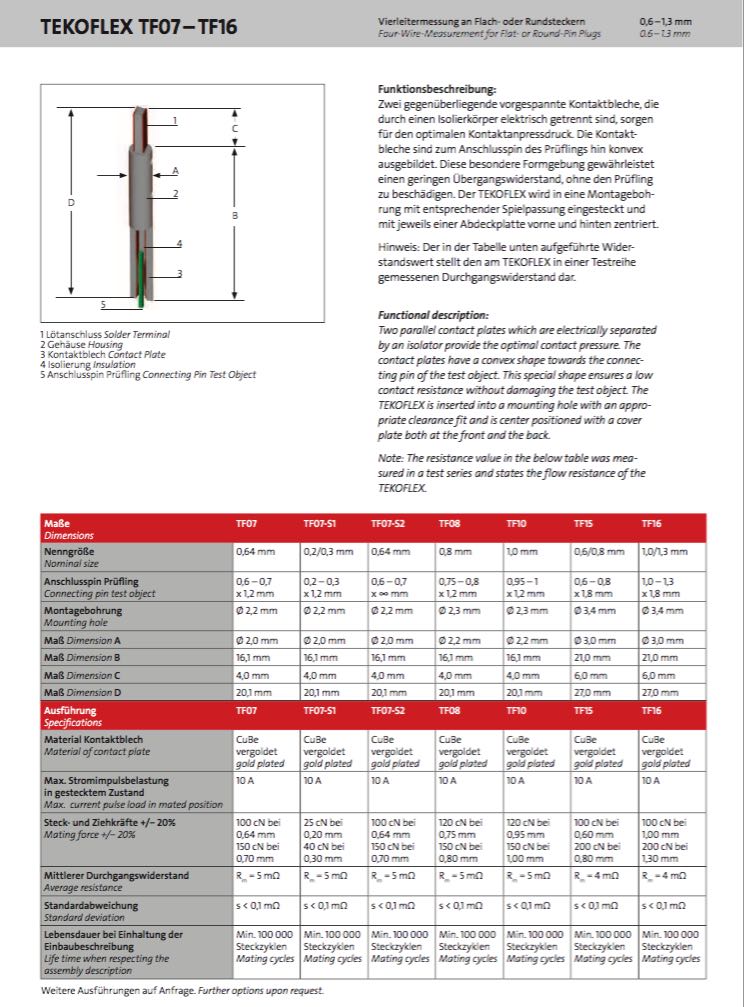

Maße

Dimensions

TF07

TF07-S1

TF07-S2

TF08

TF10

TF15

TF16

Nenngröße

Nominal size

0,64 mm

0,2/0,3 mm

0,64 mm

0,8 mm

1,0 mm

0,6/0,8 mm

1,0/1,3 mm

Anschlusspin Prü ing

Connecting pin test object

0,6 – 0,7 x 1,2 mm

0,2 – 0,3 x 1,2 mm

0,6 – 0,7 x ∞ mm

0,75 – 0,8 x 1,2 mm

0,95 – 1 x 1,2 mm

0,6 – 0,8 x 1,8 mm

1,0 – 1,3 x 1,8 mm

Montagebohrung

Mounting hole

Ø 2,2 mm

Ø 2,2 mm

Ø 2,2 mm

Ø 2,3 mm

Ø 2,3 mm

Ø 3,4 mm

Ø 3,4 mm

Maß Dimension A

Ø 2,0 mm

Ø 2,0 mm

Ø 2,0 mm

Ø 2,2 mm

Ø 2,2 mm

Ø 3,0 mm

Ø 3,0 mm

Maß Dimension B

16,1 mm

16,1 mm

16,1 mm

16,1 mm

16,1 mm

21,0 mm

21,0 mm

Maß Dimension C

4,0 mm

4,0 mm

4,0 mm

4,0 mm

4,0 mm

6,0 mm

6,0 mm

Maß Dimension D

20,1 mm

20,1 mm

20,1 mm

20,1 mm

20,1 mm

27,0 mm

27,0 mm

Ausführung

Speci cations

TF07

TF07-S1

TF07-S2

TF08

TF10

TF15

TF16

Material Kontaktblech

Material of contact plate

CuBe vergoldetgold plated

CuBe vergoldetgold plated

CuBe vergoldetgold plated

CuBe vergoldetgold plated

CuBe vergoldetgold plated

CuBe vergoldetgold plated

CuBe vergoldetgold plated

Max. Stromimpulsbelastung
in gestecktem Zustand
Max. current pulse load in mated position

10A

10A

10A

10A

10A

10A

10A

Steck- und Ziehkräfte +/− 20%

Mating force +/− 20%

100 cN bei 0,64 mm 150 cN bei 0,70 mm

25 cN bei 0,20 mm 40 cN bei 0,30 mm

100 cN bei 0,64 mm 150 cN bei 0,70 mm

120 cN bei 0,75 mm 150 cN bei 0,80 mm

120 cN bei 0,95 mm 150 cN bei 1,00 mm

100 cN bei 0,60 mm 200 cN bei 0,80 mm

100 cN bei 1,00 mm 200 cN bei 1,30 mm

Mittlerer Durchgangswiderstand

Average resistance

Rm = 5 mΩ

Rm = 5 mΩ

Rm = 5 mΩ

Rm = 5 mΩ

Rm = 5 mΩ

Rm = 4 mΩ

Rm = 4 mΩ

Standardabweichung

Standard deviation

s < 0,1 mΩ

s < 0,1 mΩ

s < 0,1 mΩ

s < 0,1 mΩ

s < 0,1 mΩ

s < 0,1 mΩ

s < 0,1 mΩ

Lebensdauer bei Einhaltung der Einbaubeschreibung
Life time when respecting the assembly description

Min. 100 000 SteckzyklenMating cycles

Min. 100 000 SteckzyklenMating cycles

Min. 100 000 SteckzyklenMating cycles

Min. 100 000 SteckzyklenMating cycles

Min. 100 000 SteckzyklenMating cycles

Min. 100 000 SteckzyklenMating cycles

Min. 100 000 SteckzyklenMating cycles



Maße

Dimensions

TF20

TF28

TF48

TF63

Nennbreite

Nominal width

2,0 mm

2,8 mm

4,8 mm

6,3 mm

Maß Dimension A

3,0 mm

4,0 mm

4,0 mm

6,8 mm

Maß Dimension B

2,6 mm

3,0 mm

3,0 mm

3,4 mm

Maß Dimension C

19,5 mm

31,5 mm

31,5 mm

31,6 mm

Ausführung

Speci cations

TF20

TF28

TF48

TF63

Material Trägerblech

Material of base plate

CuBe vergoldet

CuBe gold plated

CuBe vergoldet

CuBe gold plated

CuBe vergoldet

CuBe gold plated

CuBe vergoldet

CuBe gold plated

Material Wicklung

Material of coil windings

CuBe vergoldet

CuBe gold plated

CuBe vergoldet

CuBe gold plated

CuBe vergoldet

CuBe gold plated

CuBe vergoldet

CuBe gold plated

Max. Stromimpulsbelastung in gestecktem Zustand
Max. current pulse load
in mated position

15A

20A

20A

40 A

Steck- und Ziehkräfte +/− 20%

Mating force +/− 20%

160 cN bei 0,60 mm

200 cN bei 0,80 mm

200 cN bei 0,80 mm

300 cN bei 0,80 mm

Mittlerer Durchgangswiderstand

Average resistance

Rm = 0,7 mΩ

Rm = 1,7 mΩ

Rm = 1,7 mΩ

Rm = 0,8 mΩ

Standardabweichung

Standard deviation

s < 0,1 mΩ

s < 0,1 mΩ

s < 0,1 mΩ

s < 0,1 mΩ

Lebensdauer bei Einhaltung der Einbaubeschreibung
Life time when respecting the assembly description

Min. 300 000 SteckzyklenMating cycles

Min. 300 000 SteckzyklenMating cycles

Min. 300 000 SteckzyklenMating cycles

Min. 300 000 SteckzyklenMating cycles

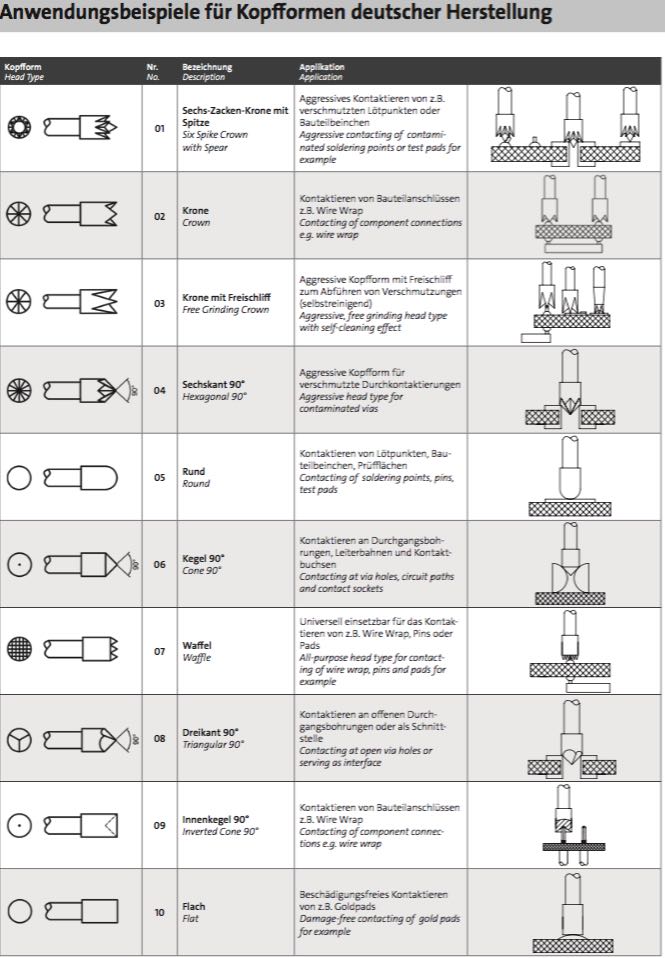

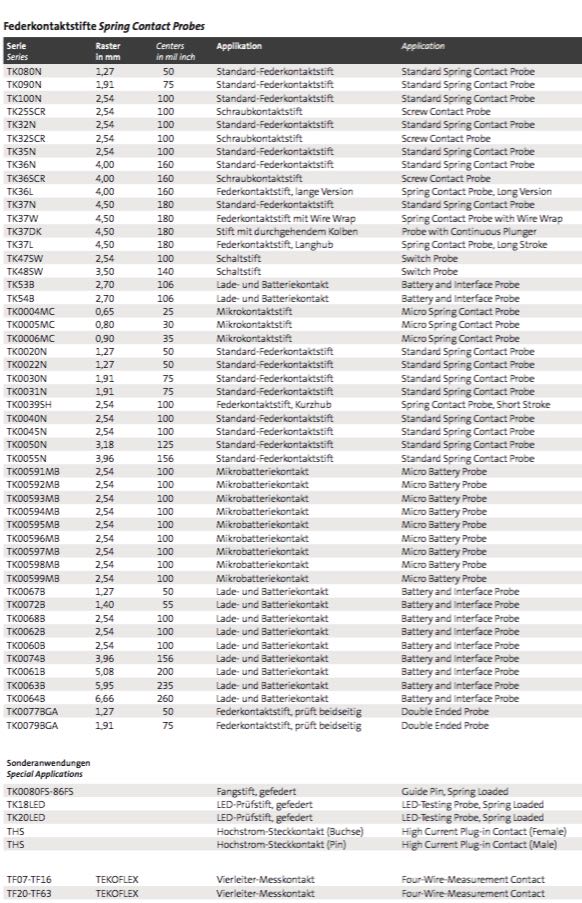

Federkontaktstifte spring Contact ProbesTK090N 1,91 75

TK25SCR 2,54 100 TK32SCR 2,54 100 TK36N 4,00 160 TK36L 4,00 160 TK37W 4,50 180 TK37L 4,50 180 TK48SW 3,50 140 TK54B 2,70 106 TK0005MC 0,80 30 TK0020N 1,27 50 TK0030N 1,91 75 TK0039SH 2,54 100 TK0045N 2,54 100 TK0055N 3,96 156 TK00592MB 2,54 100 TK00594MB 2,54 100 TK00596MB 2,54 100 TK00598MB 2,54 100 TK0067B 1,27 50 TK0068B 2,54 100 TK0060B 2,54 100 TK0061B 5,08 200 TK0064B 6,66 260 TK0079BGA 1,91 75

Sonderanwendungen

Special Applications

TK18LED THS

TF07-TF16 TEKOFLEX

Standard-Federkontaktstift Schraubkontaktstift Schraubkontaktstift Standard-Federkontaktstift Federkontaktstift, lange Version Federkontaktstift mit Wire Wrap Federkontaktstift, Langhub Schaltstift

Lade- und Batteriekontakt Mikrokontaktstift Standard-Federkontaktstift Standard-Federkontaktstift Federkontaktstift, Kurzhub Standard-Federkontaktstift Standard-Federkontaktstift Mikrobatteriekontakt Mikrobatteriekontakt Mikrobatteriekontakt Mikrobatteriekontakt
Lade- und Batteriekontakt
Lade- und Batteriekontakt
Lade- und Batteriekontakt
Lade- und Batteriekontakt
Lade- und Batteriekontakt Federkontaktstift, prüft beidseitig

LED-Prüfstift, gefedert Hochstrom-Steckkontakt (Buchse)

Vierleiter-Messkontakt

Standard Spring Contact Probe 17 Screw Contact Probe 19 Screw Contact Probe 21 Standard Spring Contact Probe 23 Spring Contact Probe, Long Version 25 Spring Contact Probe with Wire Wrap 27 Spring Contact Probe, Long Stroke 29 Switch Probe 31 Battery and Interface Probe 33 Micro Spring Contact Probe 37 Standard Spring Contact Probe 39 Standard Spring Contact Probe 41 Spring Contact Probe, Short Stroke 43 Standard Spring Contact Probe 46 Standard Spring Contact Probe 49 Micro Battery Probe 50 Micro Battery Probe 51 Micro Battery Probe 52 Micro Battery Probe 53 Battery and Interface Probe 55 Battery and Interface Probe 56 Battery and Interface Probe 57 Battery and Interface Probe 58 Battery and Interface Probe 59 Double Ended Probe
