Hypertac连接器

First-class materials, state-of-the-art development methods, advanced know-how and exact processing are the essential ingredients of our quality expertise. Industrial applications demand consistent quality and reliability as downtime is costly and impacts manufacturing. Our diverse product offering, from off-the-shelf products to customized solutions, provides unrivaled performance under the most stringent elements. This, combined with ISO certifi ed facilities and quality assurance makes Hypertac is the leading provider of interconnect solutions for the industrial market. The Essential in Industrial Technologies Reliability is the essential attribute in the leading edge technologies that we utilize. With performance such as exceptional tolerance to shock and vibration, low insertion forces, high current ratings, high mating cycles and low contact resistance, our products deliver a competitive advantage and value to our customers’ offerings. compliant with International Industrial Standards DIN IEC 61984 (VDE0627) DIN IEC 61076-2-101 DIN IEC 60512 RoHS

SKU: C2001A Category:

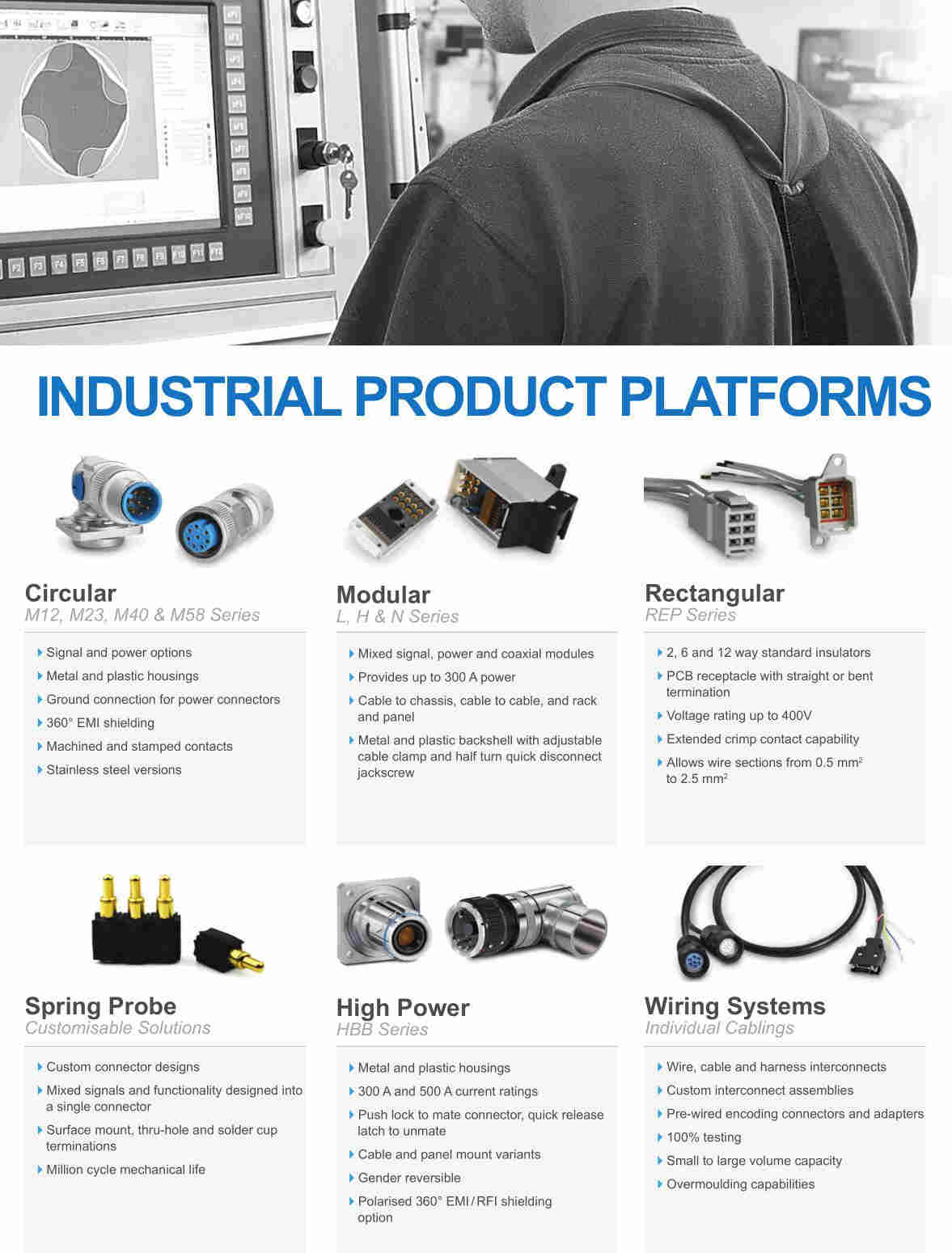

circular
M12, M23, M40 & M58 Series
? Signal and power options
? Metal and plastic housings
? Ground connection for power connectors
? 360° EMI shielding
? Machined and stamped contacts
? Stainless steel versions
modular
L, H & N Series
? Mixed signal, power and coaxial modules
? Provides up to 300 A power
? Cable to chassis, cable to cable, and rack
and panel
? Metal and plastic backshell with adjustable
cable clamp and half turn quick disconnect
jackscrew
Rectangular
REP Series
? 2, 6 and 12 way standard insulators
? PCB receptacle with straight or bent
termination
? Voltage rating up to 400V
? Extended crimp contact capability
? Allows wire sections from 0.5 mm 2
to 2.5 mm

Spring probe
Customisable Solutions
? Custom connector designs
? Mixed signals and functionality designed into
a single connector
? Surface mount, thru-hole and solder cup
terminations
? Million cycle mechanical life
High power
HBB Series
? Metal and plastic housings
? 300 A and 500 A current ratings
? Push lock to mate connector, quick release
latch to unmate
? Cable and panel mount variants
? Gender reversible
? Polarised 360° EMI/RFI shielding
option
Wiring Systems
Individual Cablings
? Wire, cable and harness interconnects
? Custom interconnect assemblies
? Pre-wired encoding connectors and adapters
? 100% testing
? Small to large volume capacity
? Overmoulding capabilities
